Photoelectric Pipe Level Sensor ZV-GDL
· Simple structure, small size, reliable performance and favorable price
· No need to consider sealing, there will be no adverse leakage phenomenon
· The pipe is straight, the water flow will be smooth, not easy to produce eddy current, turbulence, bubbles, stable and reliable signal · Meet the safety standard requirements
· Comply with RoHS requirements
· Floor washing machine, sweeping robot, medical equipment
· Other electrical appliances and equipment requiring liquid level control

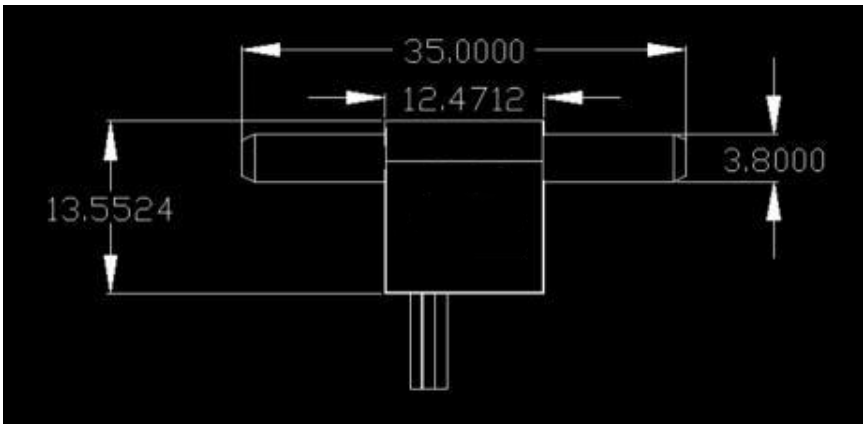

Overall Dimension

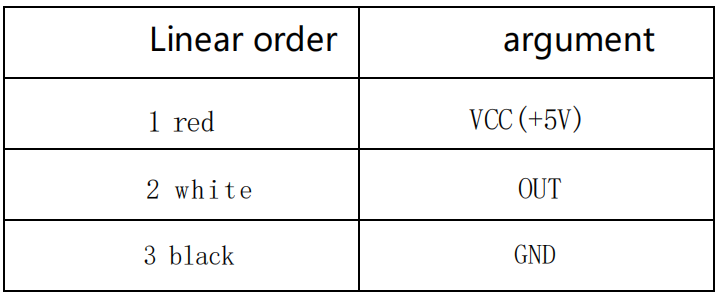

Connection Mode
Use and test

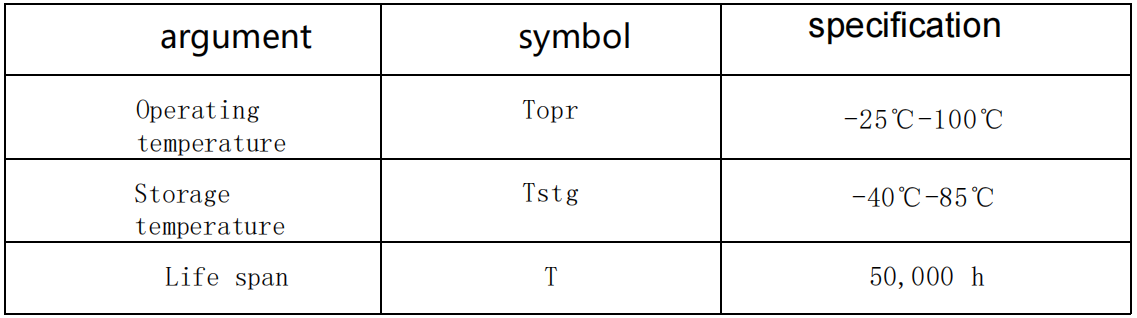

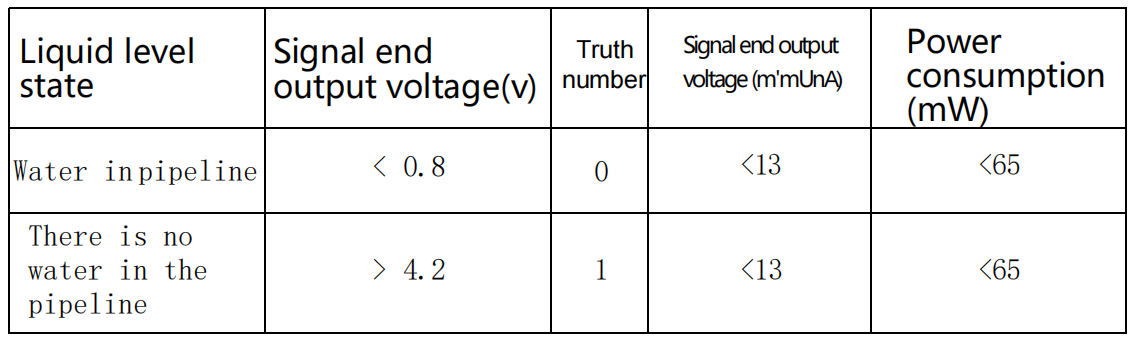

Connect the two ends of the pipeline level sensor to the hose, and the signal end will output a voltage signal consistent with the water level, which will be connected to the MCU I/O port as a level control signal. When there is water in the pipeline, the signal output will be low voltage; when there is no water in the pipeline, the signal output will be high voltage. Specific parameters are shown in the following table.
