Dire Wolf Armored SUV 4X4 Off-road Chassis


Release time:

2025-04-03

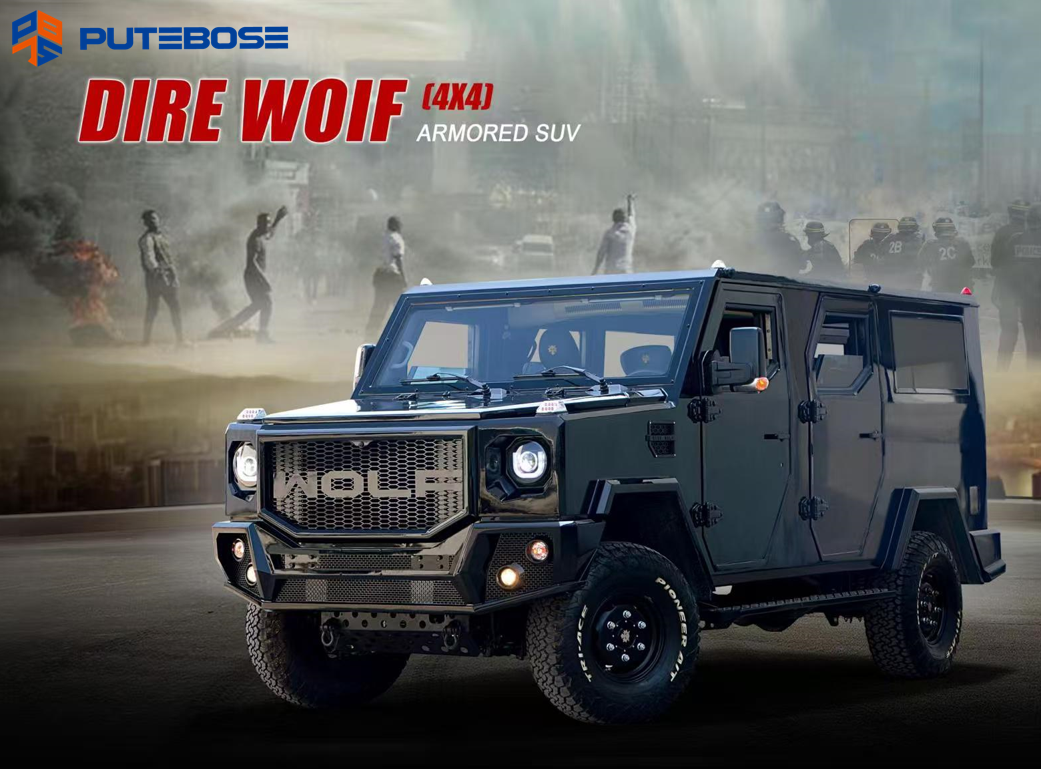

Dire Wolf Armored SUV 4X4 Off-road Chassis

**Dire Wolf Armored SUV 4X4 Off-road Chassis**

The automotive world is continually evolving, with manufacturers striving to meet the growing demand for vehicles that combine rugged performance with advanced safety features. Among the innovations in this space, the Dire Wolf Armored SUV 4X4 Off-road Chassis stands out as a remarkable blend of durability, versatility, and protection. This article will explore the features, capabilities, and applications of this formidable vehicle, highlighting why it is becoming a popular choice for various users, from military personnel to adventure enthusiasts.

**Design and Construction**

At the heart of the Dire Wolf is its robust design, which emphasizes both aesthetics and functionality. The chassis is constructed using high-strength steel and advanced composite materials, ensuring that it can withstand extreme conditions while providing maximum protection to its occupants. The armored plating is strategically placed to cover critical areas, offering resistance against ballistic threats and improvised explosive devices.

The SUV's exterior is not just about toughness; it also incorporates aerodynamic elements that enhance fuel efficiency and driving performance. The sleek lines and aggressive stance give the Dire Wolf a commanding presence on the road, making it an eye-catching vehicle whether in urban settings or off-road terrains.

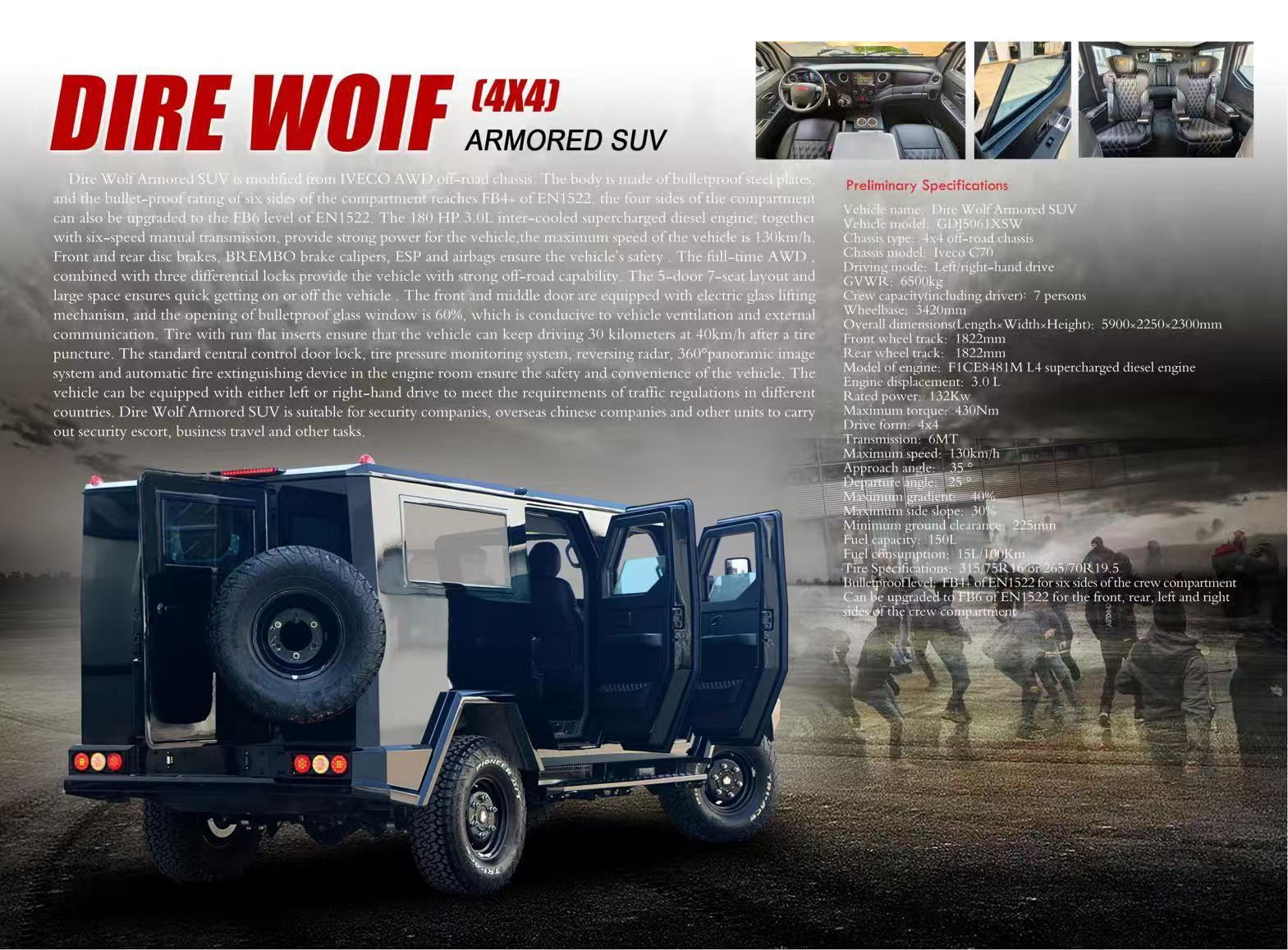

Vehicle Parameters

Chassis

Military 4x4 Off-road Chassis

Engine Model

F1CE8481M L4 Diesel Engine

Vehice Model

GDJ5061XSW

Fuel Consumption

15L/100km

Number of vehicle occupants

7

Total Mass

6500kg

Transmission

6MT

Wheelbase

3420mm

Bulletproof level

FB4+ of EN1522

Dimension

5900mm×2250mm×2300mm

Max Speed

130km/h

Fuel Tank Volume

150L

Engine Displacement

3.0L

🔹Off-road bulletproof armored personnel carrier featuring a rugged 4×4 chassis with customizable exterior options to meet operational needs in challenging environments.

🔹The 180 HP 3.0L inter-cooled supercharged diesel engine, together with six-speed manual transmission, provide strong power for the vehicle,the maximum speed of the vehicle is 130km/h

🔹All non-transparent areas are armored with Level B bulletproof composite materials. Reinforced with fire-resistant materials and precision-sealed seams to prevent bullet penetration.

🔹Tires are equipped with advanced polymer emergency protection for high durability, lightweight construction, and ease of maintenance, allowing for quick replacement when damaged.

🔹Customizable to different protection levels, this vehicle is designed for use in peacekeeping missions and sensitive operational zones, ensuring maximum safety and reliability.



**Performance and Powertrain**

Under the hood, the Dire Wolf Armored SUV is powered by a high-performance engine that delivers impressive horsepower and torque. This powertrain is designed not only for speed but also for reliability and efficiency. Whether you are cruising on highways or climbing steep inclines, the engine provides the necessary power to ensure a seamless driving experience.

Moreover, the SUV features advanced transmission systems that allow for smooth gear shifts and optimal performance. The combination of a powerful engine and sophisticated transmission makes the Dire Wolf suitable for both urban commuting and rugged adventures.



**Safety Features**

Safety is a paramount concern for any vehicle, especially for those designed for off-road use and potential combat situations. The Dire Wolf is equipped with a comprehensive suite of safety features that go beyond standard offerings. The armored chassis protects against ballistic threats, while reinforced windows provide additional security without compromising visibility.

Inside, the vehicle is equipped with modern safety technologies such as collision avoidance systems, advanced airbag systems, and stability control. These features work together to minimize the risk of accidents and enhance overall passenger safety. Additionally, the SUV includes secure communication systems, making it ideal for military and law enforcement applications.
