V-shape Optical Liquid Level Sensor ZV-CFS
·Non-contact water level switch
·5V power supply, Low power consumption
·Switch signal output, with a simple peripheral circuit
·requirements of RoHS
·electrical appliances and equipment that require liquid level control

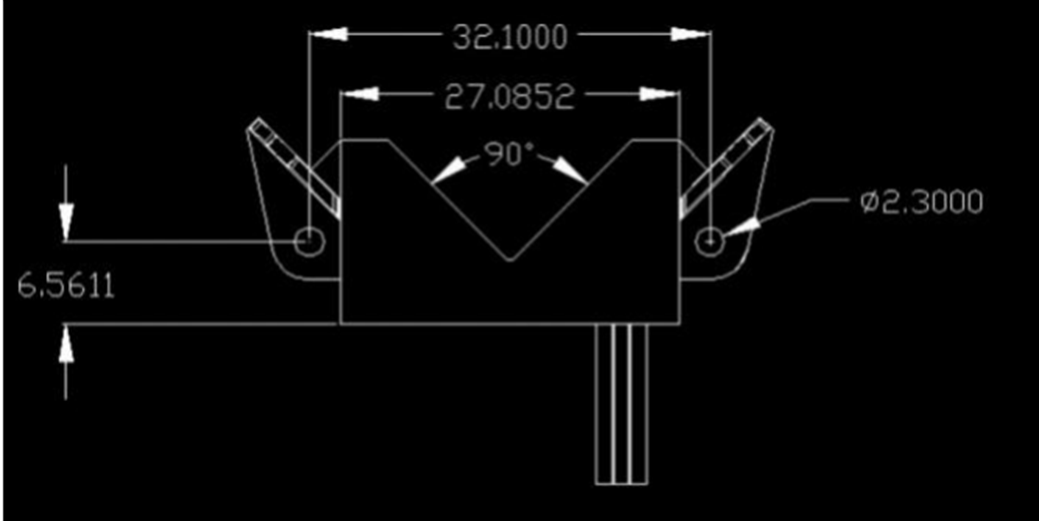

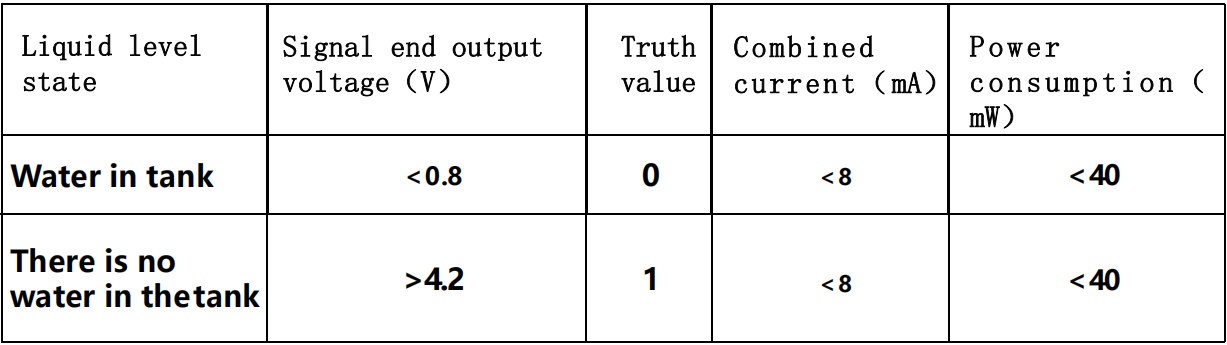

Using the principle of photoelectric detection, the product can sense whether there is liquid in the corresponding position of the water tank without contacting the liquid. The water tank only needs a right Angle ② to realize liquid detection. When there is water in the tank,the signal output is low voltage, and when there is no water in the tank, the signal output is high voltage.
Note
① The water tank needs to be transparent or translucent material, and the opaque situation needs to be communicated separately.
② The right Angle here can be 90° Angle or other angles close to 90°, and now it can be ±2°. Also,the right Angle. The position can be a plane or a curved surface, such as the bottom surface of an upright cylinder.
