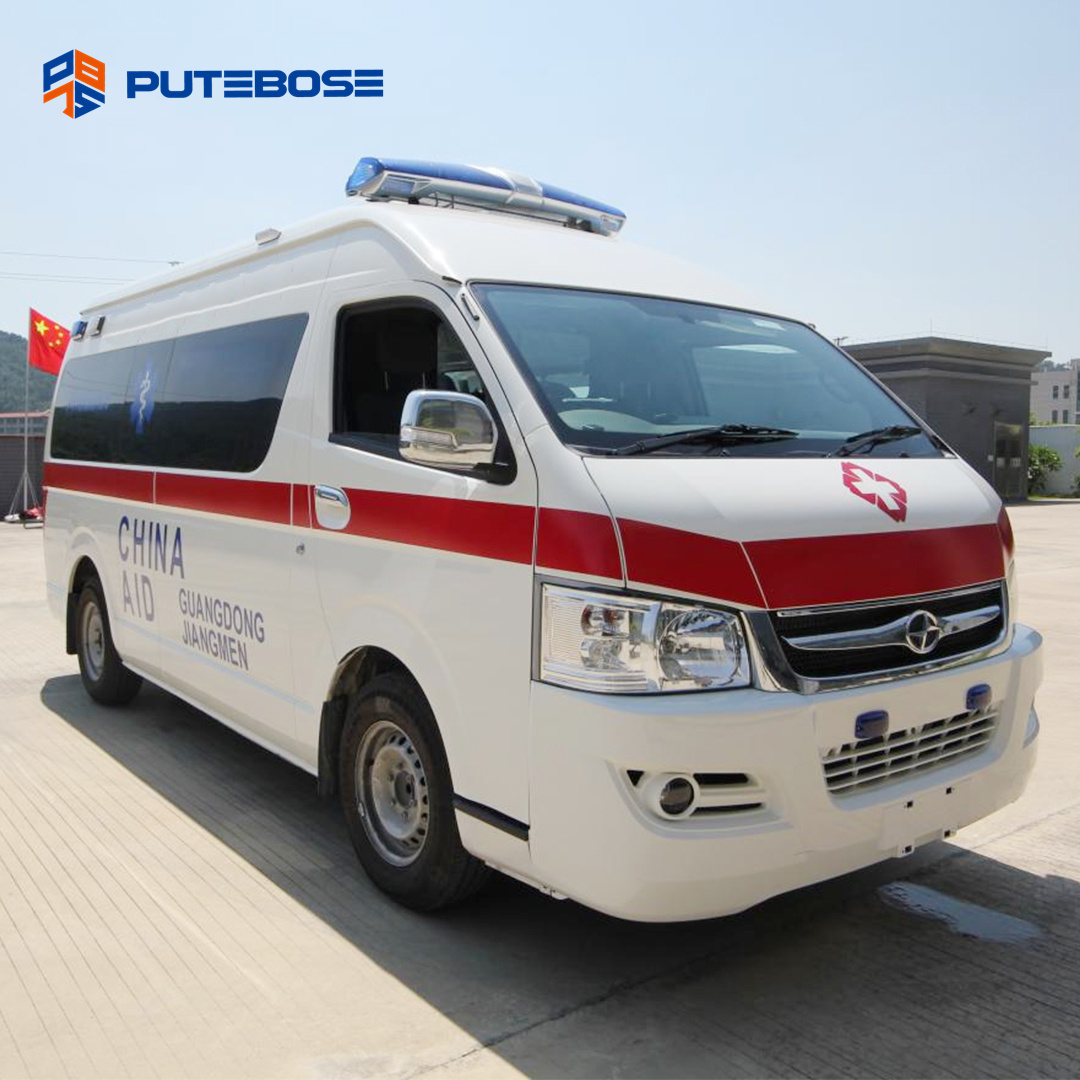

Hiace Original-roof Ambulance Support Customization ABS Injection Molding Diesel Ambulance Vehicle

🔹 As a professional ambulance manufacturer, Putebose delivers the advanced ambulance vehicle Joylong Hiace ABS (RHD-MT), engineered for reliability and medical efficiency. 🔹 Equipped with a high-transparency police lampshade and embedded LED cabin lighting (adjustable white/yellow light, 5-level brightness) 🔹 The central power system provides uninterrupted 220V pure sine wave output (≥1000W), supporting 24-hour operation of critical medical devices. 🔹 Specialized equipment includes an automatic loading stretcher, scoop stretcher, stair stretcher, and stretcher platform for versatile emergency response. 🔹 Built with high-quality ABS injection-molded boards, the cabin boasts wear resistance, impact strength, and easy customization, outperforming standard ABS materials.
Product Category:

Special Vehicle

Ambulance

Key words:

ambulance body maker

Inquiry
Contact Us
Product Details

Product Introduction


Model: Joylong Hiace ABS (RHD-MT)

Warning & Lighting System:
1. The police lampshade is made of high light transmission material, which has high transparency and does not fade.
The square LED lightings inside the medical cabin is embedded in the top of the medical cabin. It adopts the surrounding design, with a wide range of lighting and soft light. The light can be switched between white light and yellow light through the control panel of the medical cabin. The brightness can be adjusted in five levels.

Central Power Distribution System:
1. Install an ambulance vehicle-mounted power supply device of the utility model, which can realize uninterrupted power supply for 24 hours when the vehicle is started, and can output pure sine wave power of 220V and not less than 1000W for medical equipment.

Special Equipment:
1. Specialized stretcher platform
2. Automatic loading stretcher
3. Scoop stretcher
4. Stair stretcher

Why Choose Putebose?
1. Support chassis conversion and medical equipment customization.
2. Able to offer OEM & ODM services for special vehicles.
3. Providing tailored solutions according to customer needs.



Product Parameters

Vehicle technical parameters

1

Dimension mm:

5380×1880×2430

2

Patient compartment size mm:

3400×1670×1610

3

Wheelbase mm:

3110

4

GVW kg :

3550

5

Kerb weight kg:

2600

6

Suspension devices:

Front double wishbone independent suspension/Rear variable rate leaf spring （five pcs)

7

Minimum turning radius mm:

6.2

8

Fuel type:

Diesel

9

Fuel tank (L):

70

10

Engine type:

DK4B1

11

Operating mode:

Turo

12

Displacement(ml):

2438

13

Rated power kw(hp)/rpm

100/3600

14

Max. torque Nm/rpm:

260/1600-2400

15

Emission standard:

EURO-III

16

Driving mode:

Rear-wheel drive

17

Clutch:

Single disc, hydraulic control

18

Speed transmission:

Manual 5 speeds, flexible shaft control, 4.556 differential

19

Max speed km/h:

130

20

Tire size:

195/R15C radial tire，steel rim

21

Braking system(Front/Rear):

Front Disc Rear Drum

22

Rated capacity(driver included):

8

Vehicle main configurations

23

Power driver & co-driver window

24

UV blocking glasses

25

ABS+EBD, Initiative vacuum booster

26

Solid color
